Home / Mining Equipmen Parts / Hot-Rolled Sheet Main Drive Gearbox
PARAMETERS
The Hot-Rolled Sheet Main Drive Gearbox can provide power transmission for the rough rolling area and the finishing rolling area produced by hot continuous rolling plate, continuous casting and continuous rolling plate, etc.

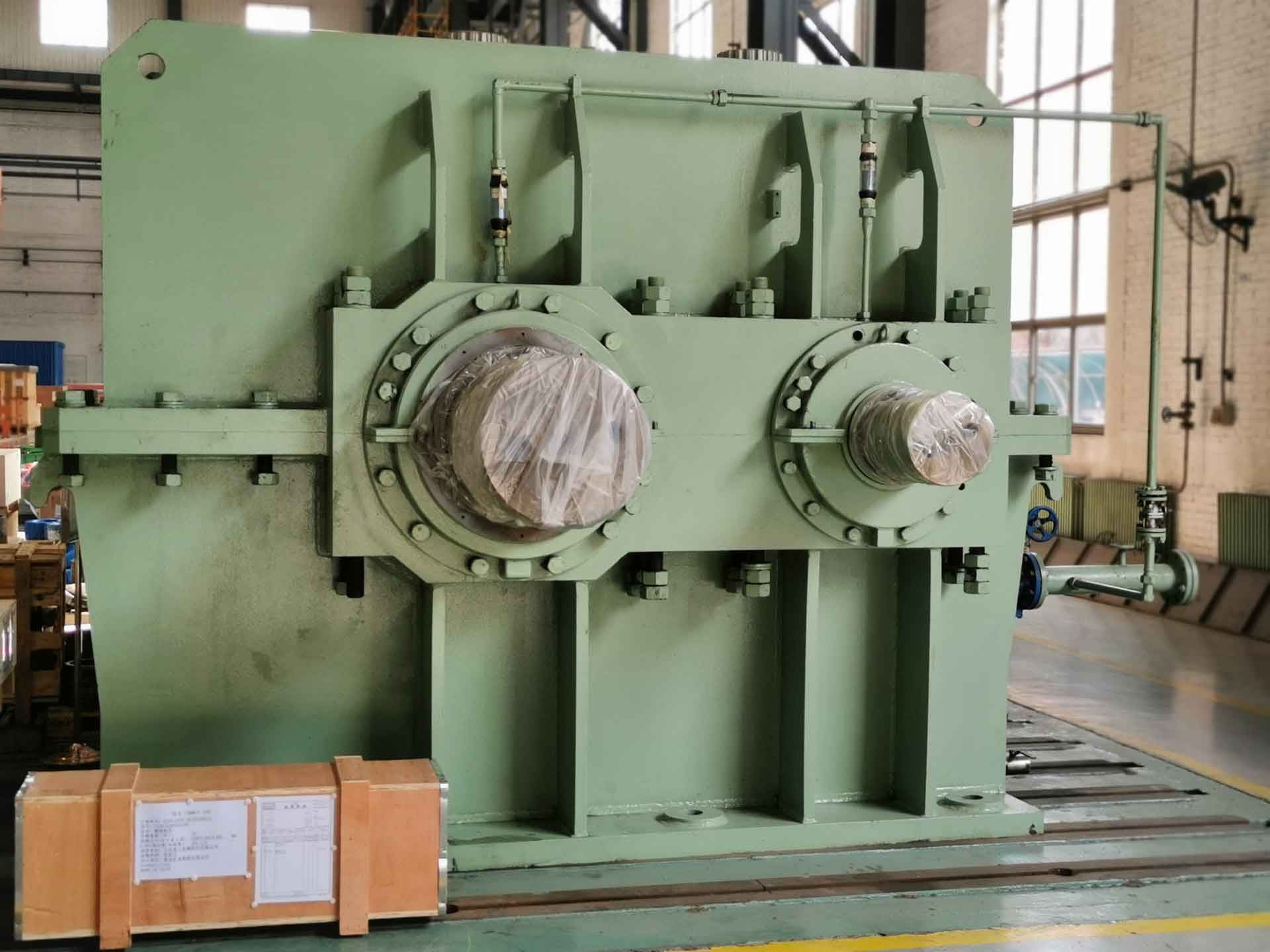

■ Hot-Rolled Sheet Main Drive Gearbox
◆Performance characteristics
Optimized gear modification technology with high rigidity

High torque transmission
Carburized and hardened welded gears with hard tooth surfaces reduce weight

The main technical parameters
Rated power: up to 12,000 kW
Number of levels: one or two levels
Speed  Ratio: 1–10
Torque: up to 4,200 kN.m
Main application areas
Mainly used in hot continuous rolling, continuous casting and continuous rolling plate rolling production line.

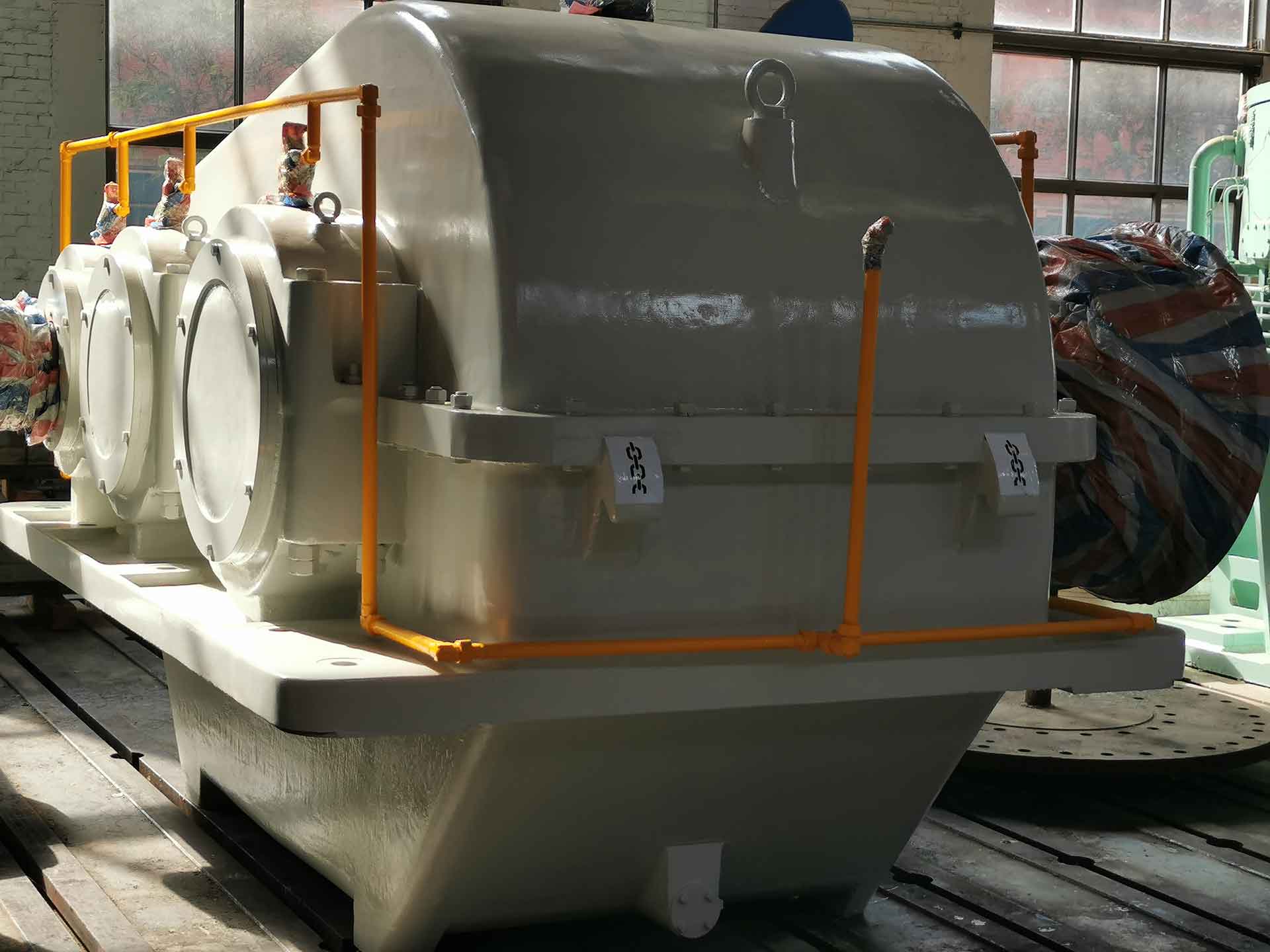

■ Planetary Differential Gearbox
The gearbox of XCJ series port ship unloader adopts planetary differential gearbox, which is applied to the four-drum drive system of bridge grab ship unloader. The input motion of the closing motor and the walking motor is transformed into different rotation directions of the four drums and the combination of different speeds of movement, so as to control the lifting, opening, closing and walking of the grab. The key core equipment of marine aircraft.
◆Performance characteristics

Special design to meet the requirements of different working conditions.
Compact structure and large carrying capacity.
Gear modification, large contact ratio of tooth surface, low noise.
Mechanical seal, easy to use and maintain.
Large selection of center distance.
The main technical parameters.
Specification: XCJ
Transmission Ratio: 11.2–50.
Maximum loading and unloading capacity: 5,000t / h.
Center distance between two output shafts: 800–2,800 mm.
Main application areas.
Bridge grab ship unloader.
