Home / Mining Equipmen Parts / Grinding Mill
PARAMETERS
Ball Mill,SAG/AG Mill,Rod Mill,
■ Grinding Mill Products
◆ AG Mills
◆ SAG Mills
◆ BALL  Mills
◆ ROD Mills
◆ Cement Mills
■ Grinding Mill Main Components
◆ Casting Grinding Head;
◆ Transmission;
◆ Welded Parts Mill Shell;
◆ Mill Liner;
◆ Feeding Part, Discharging Part;
◆ Slow Drive
◆ Electric Control and Hydraulic System;
◆ Frequency Converter.
■
Grinding Mill Design Software

◆ CAD
◆ SOLIDWORKS
◆ FLUENT
◆ EDEM
◆ PROCAST
■ Φ3.2 x 4.5m Ball mill for a copper mine in Inner Mongolia

Mineral Power Capacity Effective volume Speed Steel ball filling Granularity of ore feed Effective Operating Efficiency
Copper mine 800Kw 150t/h 31m3 19.4r/min 61t ≤20 92%


■ Φ 3.6 ×4.5m Ball mill for a copper mine in Fujian Province


Mineral Power Capacity Effective volume Speed Steel ball filling Granularity of ore feed Effective Operating Efficiency
Copper mine 1000Kw 180t/h 40m3 17.8r/min 78t ≤25 91%


■ Φ5.8×8.5m Ball mill for a copper mine in Fujian Province


Mineral Power Capacity Effective volume Speed Steel ball filling Granularity of ore feed Effective Operating Efficiency
Iron ore 4500Kw 320t/h 191m3 13.8r/min 335t ≤18 90%

■ HENGIN can provide CITIC, SINOMA, NHI and other brand Grinding Mill,Ball mill, SAG mill ,AG mill,Rod mill and spare parts for mine customers around world.
Process

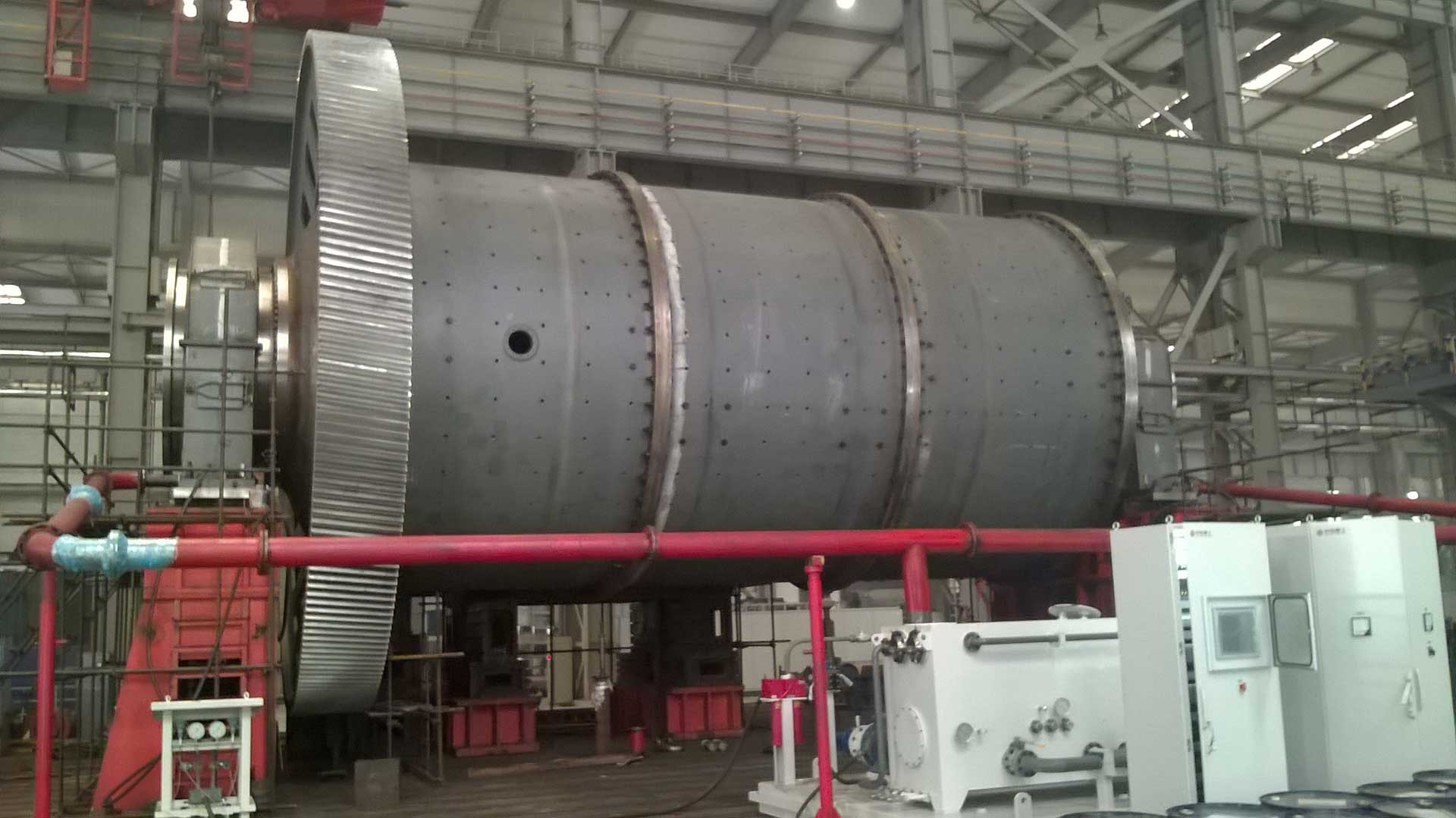

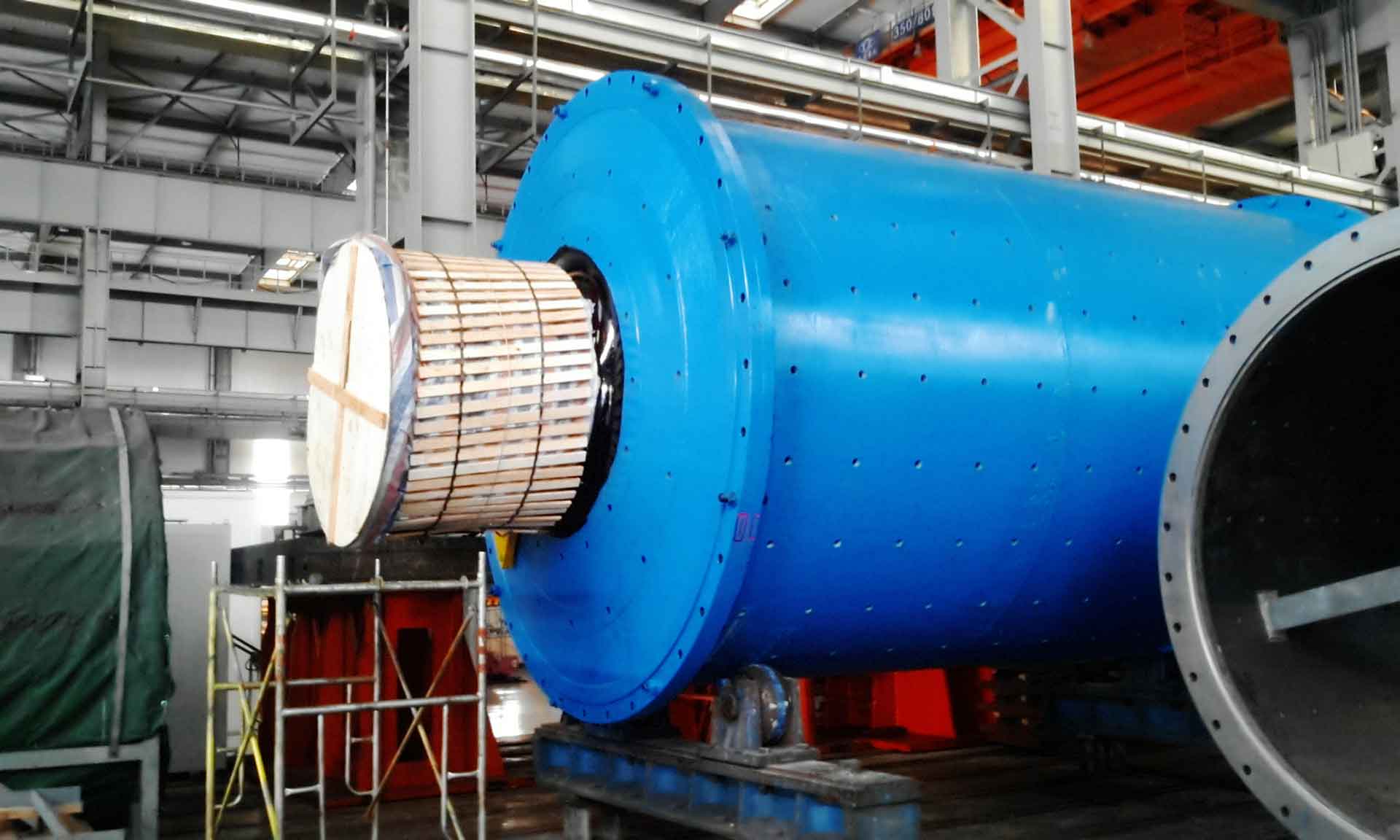

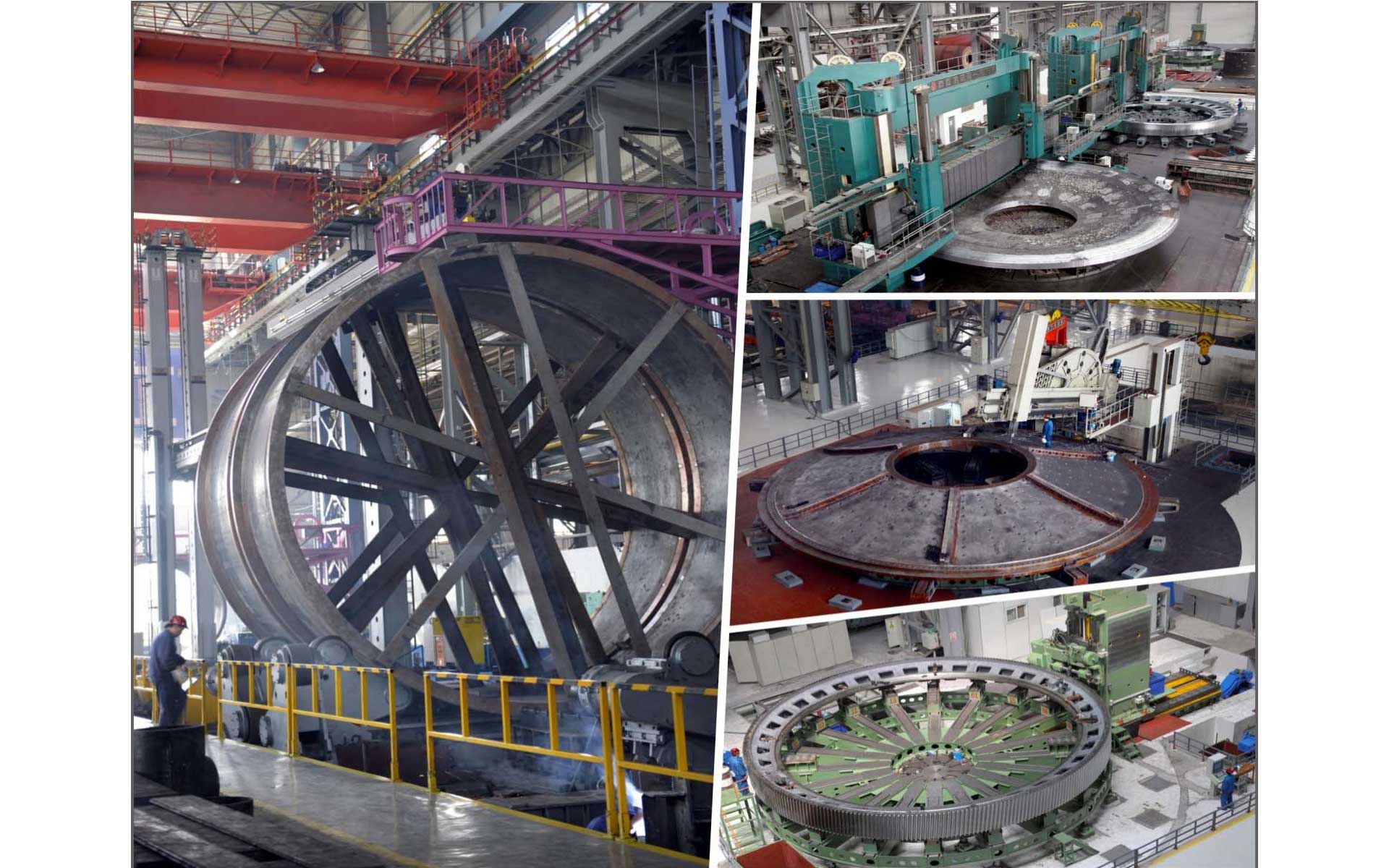

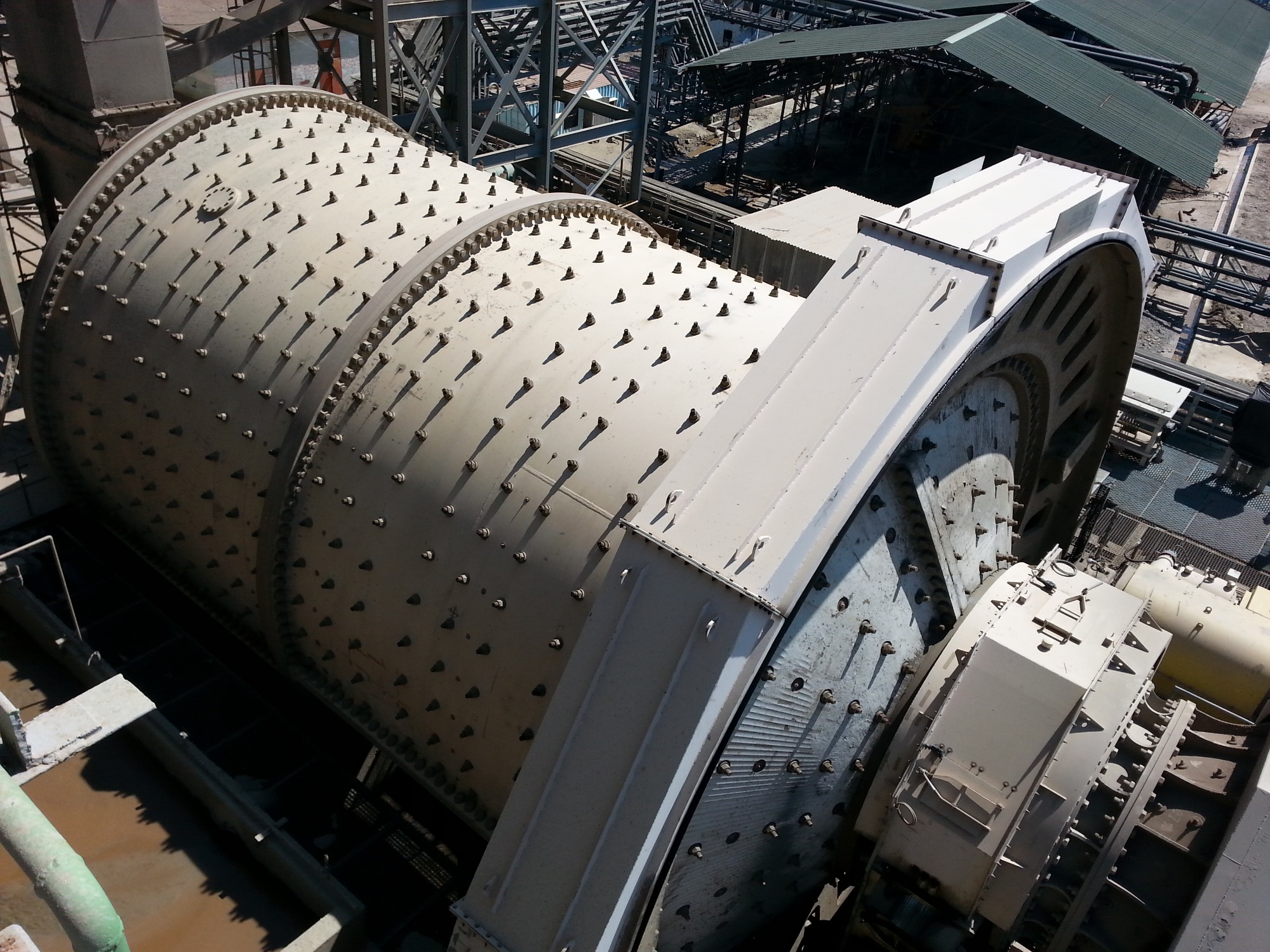

1Gringding Mill Design 2Gringding Mill Manufacturing 3Trial Run Of Grinding Mill 4Gringding Mills Case
